CSS layout fundamentals, part 3: block and inline boxes

This is the third part in my series of articles on CSS layout fundamentals. Designed to rid the world of table-based layouts forever, you can find the other parts here:

The CSS 2.1 visual formatting model describes two primary types of boxes used for visual layouts: block and inline boxes. It is important to understand the properties of each kind of box when creating layouts with CSS.

Block box formatting

Block boxes are formatted one after the other down the page. Block boxes can contain other block boxes (or inline boxes, as we shall see). The diagram below shows one example.

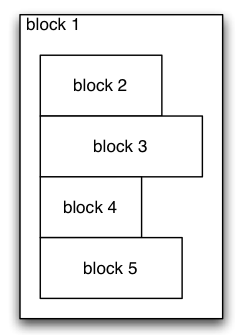

Diagram with block boxes down the page
Block box formatting

In this example, you could think of block #1 as the <body> tag in an HTML page. Blocks #2-5 could be paragraphs in the page.

Any element in HTML can be turned into a block box by setting the display CSS property to “block”.

Inline box formatting

Inline boxes behave very differently to block boxes. Inline boxes flow into line boxes, and are split as necessary to fit the width of their container.

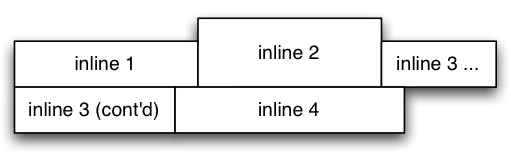

Diagram with inline boxes split across lines
Inline box formatting

In this example, the inline elements have vertical alignment of bottom or baseline so that inline #2 sticks out the top of the first line. Inline #3 is split over two lines.

Vertical margin and padding on inline elements is ignored in the visual formatting model. You can use the line-height property to adjust the height of inline elements instead.

Any element in HTML can be turned into an inline box by setting the display CSS property to “inline”.

Normal flow

The following diagram shows the normal flow. Block boxes contain other block or inline boxes. Inline boxes flow into line boxes.

Diagram with boxes in the normal flow
Normal flow

All blocks in this example have a position of “static”. Static is the default position value.

CSS 2 provides functionality to position boxes relative to, and outside of the normal flow. This is what we’ll cover in the next part.
